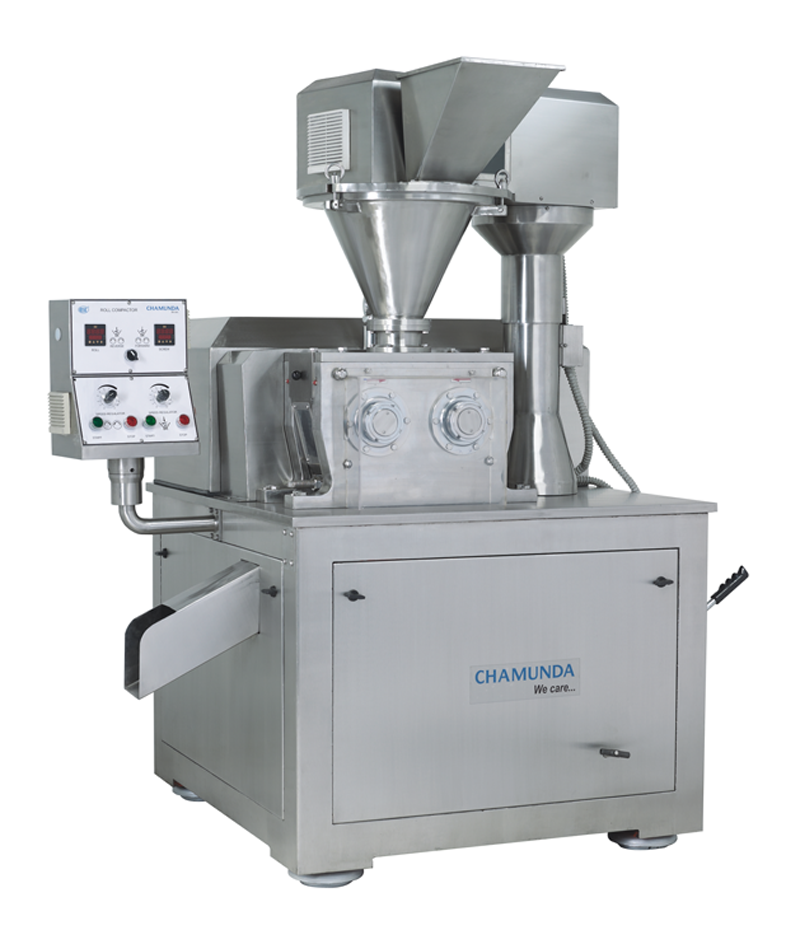

Our offers Roll Compactor, Roller Compactors For Dry Granulation, Roll Compactor Machine, Freund-Vector-Roller Compactor Spare, Gerteis Roller Compactor Spare.
FEATURES
§ In compliance with cGMP guidelines
§ Contact parts are made of S.S. 316 except rollers
§ All covers are designed to obtain dust-free operation
§ Feed screw is steplessly driven through variable frequency drive.
§ Hard chome plated & mirror finished compacting rolls made of tools steel
§ Pre-compaction chamber guides the product to rolls without any slippage or leakage.
§ Electrical interlocking beetween main roll drive and feed screw drive
§ Water Jacketing arrangement (optional)
§ Hydraulic Power Pack system (optional)
§ ACVF Drive for rolls (optional)
§ PLC system as per 21 CFR part 11 (optional)
|
MODELS |
CPMRC 200/50 |
CPMRC 200/75 |
CPMRC 200/100 |
CPMRC 200/150 |
CPMRC 300/330 |
|
Max. Output (kg/hr) * |
20 to 60 |
30 to 100 |
100 to 250 |
100 to 350 |
100 to 1000 |
|
Roll Speed (RPM) |
6 to 25 |
6 to 25 |
6 to 22 |
6 to 22 |
6 to 25 |
|
Feed Screw Speed |
10 to 60 RPM |
10 to 60 RPM |
16 to 50 RPM |
16 to 50 RPM |
10 to 90 RPM |
|
Roll Drive Motor |
5 HP |
5 HP |
7.5 HP |
10 HP |
30 HP |
|
Feed Screw Drive motor |
2 HP |
2 HP |
3 HP |
3 HP |
5 HP |
|
Electrical Supply ** |
7 HP, 3 Ø, A.C. |
7 HP, 3 Ø, A.C. |
10.5 HP, 3 Ø, A.C. |
13 HP, 3 Ø, A.C. |
28 HP, 3 Ø, A.C. |
